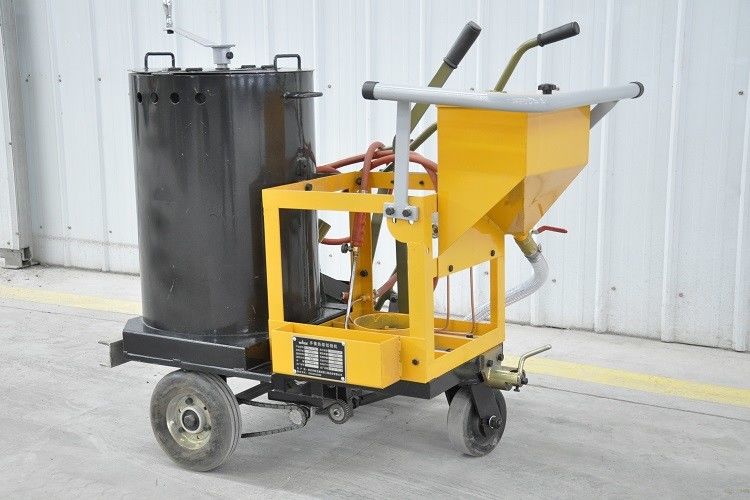

Human Pushing Thermoplastic Road Line Striping Marking Machine - 120kg Paint Capacity
Hand pushing thermoplastic pavement line striping marking equipment machine
The Thermoplastic Line Marking Machine is a road construction device designed for applying various road markings including restrictions, guidelines, and warnings on surfaces such as roads, highways, parking lots, squares, and runways. This machine works in conjunction with a thermoplastic applicator to complete marking projects efficiently.
Key Features
- Double-layer stainless steel thermal paint barrel with manual mixing device ensures optimal melt temperature and consistency when heated with a high-efficiency gas stove
- Synchronized clutch glass bead seeder provides even distribution of glass beads on marking lines
- Rear wheel alignment system enables precise straight-line movement with ultra-thin material application
- Scraper structure with wear-resistant cemented carbide floor knife creates neat, beautiful line edges
- Adjustable marking width options: 100/150/200/300/400/450mm (custom widths available)
Technical Specifications
| Model |
HG-15MM |
HG-15LM |
HG-DM |
| Marking mode |
Thermoplastic scraping |
| Moving mode |
Labor pushing |
Labor pushing |
Motor self-propelled moving |
| Battery capacity & voltage |
- |
- |
12x4=48AH / 48V |
| Moving speed |
- |
- |
1-8km/h |
| Paint cylinder capacity |
120kg |
120kg |
120kg |
| Glass micro sphere cylinder capacity |
25kg |
25kg |
25kg |
| Dispenser mode |
Automatic dispenser |
Manual dispenser |
Automatic dispenser |
| Marking thickness |
1.2-3mm adjustment range |
| Scoop size options |
100/150/200/300/400/450mm (marking scoops replacement) |
| Size (L*W*H)mm |
1200*900*1100 |
1200*900*1100 |
1250*1000*950 |
| Weight |
128kg |
128kg |
150kg |
Main Components
Marking Shoes: Constructed from durable alloy material, these shoes maintain precise line marking even on uneven surfaces. Available in multiple sizes (10cm, 15cm, 20cm, 30cm, 40cm, 45cm) with options for custom sizes. Simple structure allows for easy disassembly, replacement, and maintenance.
Glass Beads Dispenser: Ensures synchronized application with marking lines while allowing precise control over dispensing quantity.
Nozzle System: Features an increased nozzle on top of the outlet port plus two additional nozzles behind the marking shoes to maintain paint temperature at approximately 180°C from outlet to ground.
Paint Tank: 125L capacity allows melting more paint at once, saving time and improving efficiency. Includes tank filter to prevent feeding issues like blockages or missing applications.
Glass Beads Tank: 125L capacity meets extra requirements for surface paint applications.
Construction Operation
Our company maintains strict quality standards and operational principles focused on delivering superior products. We prioritize customer satisfaction through high-quality manufacturing, continuous improvement, and reliable service. Committed to "customer first, quality first and reputation first" principles, we serve domestic and international clients with premium road marking solutions.
